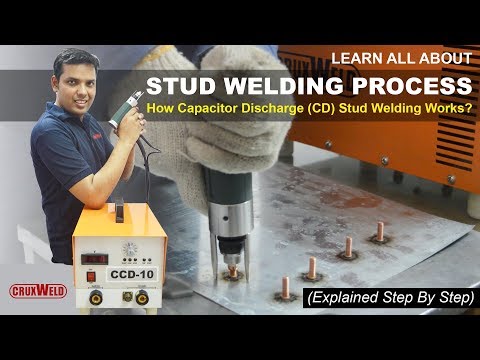

Stud Welding Machines

CRUXWELD are engaged in providing a distinguished and high quality collection of Stud welding Machine. Our offered machine is manufactured using high grade raw material and advanced technology. Further, we offer this machine to our prestigious clients in numerous models(CCD-8,CCD-10,CSD-12, CSD-16,CSD-19,CSD-25) to fulfil their needs.

Features:
  • Light weight power source producing conventional CD welding power.
  • Durable, long-life weld SCR and specially designed capacitors.
  • Welds mild steel, stainless steel, aluminium and brass.
  • Short charging time, high efficiency.
  • No additional material such as flux or filler necessary.
  • Extremely short weld time (0.001 - 0.003 sec) permitting welding on thin metal sections without any leakages.

Stud Welder

Stud Welder
  • Stud Welder
  • Stud Welder
Get Best Quote
Approx. Price: Rs 82,000 / PieceGet Latest Price

Product Details:

Minimum Order Quantity1 Piece
Input SupplyAC 220 V (+/-10%)
Stud Welding Range (Diameter)2-10 mm
PhaseSingle Phase
Automatic GradeAutomatic
Output Current200-300 A
Capacity600 Studs, 110,000 microfarad
Voltage50-200 V
Weight16 kg
Frequency50 Hz
Product CodeCCD10
BrandCruxweld
Class ProtectionIP23
CoolingAir Cooled
Fusing32A
Maximum Kva Rating14
Transformer Insulation ClassH
Weld Rate8 to 20 studs per min
Weld Stud Range2 to10 mm

With vast experience and knowledge we are involved in offering a premium quality range of Stud Welders. Offered products are highly acclaimed among our clients due to their long life and rigid construction. These are well known for their uniform high welding quality and are also well tested on various parameters by our experts before they are dispatched. Besides, these are available in market at reasonable prices.


Features:

  • Light weight power source producing conventional CD welding power
  • Durable, long-life weld SCR and specially designed capacitors
  • Weld strength consistently exceeds that of the stud or parent metal
  • Welds mild steel, stainless steel, aluminum and brass
  • Easy adjustment of capacitor voltage
  • Continuously adjustable charging voltage, welding data can be adjusted to best suit the job
  • Optimally designed circuit to control the welding process, working stability and uniform welding quality
  • Well established circuit protection to ensure safety of worker and equipment
  • Short charging time, high efficiency
  • No additional material such as flux or filler necessary
  • Elimination of operations such as drilling and riveting
  • Extremely short weld time (0.001 - 0.003 sec) permitting welding on thin metal sections without any leakages
  • The welding zone is minimal to avoid distortion of the work piece
Request
Callback
Yes! I am Interested
View PDF

Stud Welding Machine

Stud Welding Machine
  • Stud Welding Machine
  • Stud Welding Machine
Get Best Quote
Approx. Price: Rs 5.98 Lakh / PieceGet Latest Price

Product Details:

Minimum Order Quantity1 Piece
Capacity25 mm
Welding TypeDrawn Arc Stud Welder
Brandcruxweld
Automatic GradeAutomatic, Semi-Automatic
PackagingWooden Box
Phase3
Warranty12 Months
Power Source415V
Output Current (Ampere)200-300, 300-400, 400-500
Capacity (products per hours)200
Material of ConstructionStainless Steel
Surface Treatment Galvanised

To furnish the diverse requirements of our clients in the best possible manner we are involved in offering to our clients Stud Welding Machine. These are well tested on several parameters by our quality inspectors to render maximum client satisfaction. These are used for fixing studs onto the parent material and are very reliable also. We also assure to dispatch our range on a given time frame.

Features:

  • Light weight power source producing conventional CD welding power
  • Durable, long-life weld SCR and specially designed capacitors
  • Weld strength consistently exceeds that of the stud or parent metal
  • Welds mild steel, stainless steel, aluminum and brass
  • Easy adjustment of capacitor voltage
  • Continuously adjustable charging voltage, welding data can be adjusted to best suit the job
  • Optimally designed circuit to control the welding process, working stability and uniform welding quality
  • Well established circuit protection to ensure safety of worker and equipment
  • Short charging time, high efficiency
  • No additional material such as flux or filler necessary
  • Elimination of operations such as drilling and riveting
  • Extremely short weld time (0.001 - 0.003 sec) permitting welding on thin metal sections without any leakages
  • The welding zone is minimal to avoid distortion of the work piece
Request
Callback


Additional Information:

  • Item Code: CSD16
  • Production Capacity: 5000
  • Delivery Time: 1
Yes! I am Interested

Stud Welding Services

Stud Welding Services
  • Stud Welding Services
  • Stud Welding Services
  • Stud Welding Services
  • Stud Welding Services
  • Stud Welding Services
  • Stud Welding Services
  • Stud Welding Services
  • Stud Welding Services
Get Best Quote
Approx. Price: Rs 14 / PieceGet Latest Price

Product Details:

Minimum Order Quantity5000 Piece
Welding TypeStud Welding
BrandCruxweld
Company NameCruxweld Industrial Equipments Pvt. Ltd.
Phase3
Finished Product Delivery TypeHome Delivery
Productivity2000 Shear Studs / Day
ApplicationIndustrial
Service providerCruxweld

Cruxweld (P) Limited is a benchmark for Stud Welding Services with its hands tied in all major projects across India. We have welded more then 4 Million Shear Stud in last 8 years.
  • We Provide On Site Service along with Complete Team Including Professional Engineers and Qualified Welders.
  • Cruxweld (P) Limited has significance contribution in services for shear connector in the field of Railway Bridges, ROB’s, Power Plant, Airports & Commercial Buildings.
  • We Undertake Stud installation jobs using Cruxweld Make Drawn Arc Stud welding machines achieving desired welding quality satisfying Clients requirements.
  • Cruxweld can produce an output of 2000 nos. Shear Studs per Day with a single Drawn Arc Stud welding machine for studs to be welded on beams directly for Composite Bridges & 1000 nos. Studs per Day to be welded on through Deck for Composite Construction.
  • We have always focused our striven efforts in offering an unparalleled range of Stud Welding Services in order to provide maximum satisfaction to the clients.
Request
Callback
Yes! I am Interested

Stud Welders

Stud Welders
  • Stud Welders
  • Stud Welders
Get Best Quote
Approx. Price: Rs 88,000 / PieceGet Latest Price

Product Details:

Minimum Order Quantity1 Piece
Capacity2 to 10 mm
Welding TypeCapacitor Discharge Type Stud Welder
Automatic GradeSemi-Automatic
PackagingWooden Box
PhaseSingle
Warranty12 Months
Power Source230V
Automation GradeAutomatic
BrandCruxweld
Voltage220 V / 380 V / 415 V
Weld time0.001 to 0.003 sec
Material of ConstructionStainless Steel, Aluminium

With vast experience and knowledge we are involved in offering a premium quality range of Stud Welders. Offered products are highly acclaimed among our clients due to their long life and rigid construction. These are well known for their uniform high welding quality and are also well tested on various parameters by our experts before they are dispatched. Besides, these are available in market at reasonable prices.

Features:
  • Light weight power source producing conventional CD welding power
  • Durable, long-life weld SCR and specially designed capacitors
  • Weld strength consistently exceeds that of the stud or parent metal
  • Welds mild steel, stainless steel, aluminum and brass
  • Easy adjustment of capacitor voltage
  • Continuously adjustable charging voltage, welding data can be adjusted to best suit the job
  • Optimally designed circuit to control the welding process, working stability and uniform welding quality
  • Well established circuit protection to ensure safety of worker and equipment
  • Short charging time, high efficiency
  • No additional material such as flux or filler necessary
  • Elimination of operations such as drilling and riveting
  • Extremely short weld time (0.001 - 0.003 sec) permitting welding on thin metal sections without any leakages
  • The welding zone is minimal to avoid distortion of the work piece
Request
Callback


Additional Information:

  • Delivery Time: 2 to 4 Days
Yes! I am Interested

Stud Welding Machine

Stud Welding Machine
  • Stud Welding Machine
  • Stud Welding Machine
Get Best Quote
Approx. Price: Rs 3.85 Lakh / PieceGet Latest Price

Product Details:

BrandCruxweld
Weld Cycle0.01 seconds
Automatic GradeAutomatic
Phase3
Voltage415V
Efficiency85 %
Capacityupto25mm
Frequency50 Hz
CoolingAir Cooled
Fusing150A
Transformer Insulation ClassH

We are one of the leading Arc Weld Stud manufacturer in India. Arc Weld Stud welding is a very simple, fast and accurate welding method, which combines two identical or different metals without the use of filler metal or any consumables. Fastener and base metals are of many types of materials such as steel, stainless steel, aluminum etc. Stud welding is a process in which metal stud and base material joint together by heat and pressure. The Arc Stud welding method provides highly reliable fastening and used in wide range of applications.

Types of Arc Weld Stud:

1. Drawn Arc Stud Welding

The Drawn Arc Stud Weld is progressed to weld the large diameter studded fastener with thick base metal. In Drawn Arc Stud Welding we can weld diameter from 2 to 25 mm.

2. Capacitor Discharge Stud Welding

Capacitor Discharge Stud Welding is generally used to weld the thin base metals to the smaller diameter stud fasteners. The weld cycle can be completed in 0.01 seconds and can also weld on 0.5 mm thin material. According to DIN in capacitor discharge stud welding we can weld from M3 to M10 or diameter from 2 to 10 mm.

Request
Callback
Yes! I am Interested

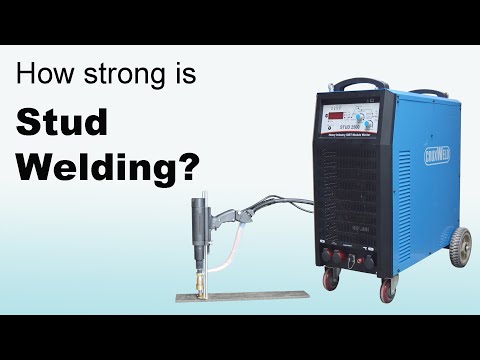

IGBT Inverter Stud Welding Machine

IGBT Inverter Stud Welding Machine
  • IGBT Inverter Stud Welding Machine
Get Best Quote
Approx. Price: Rs 5.88 Lakh / PieceGet Latest Price

Product Details:

Minimum Order Quantity1 Piece
Output Current200 to 2500 A
Power SourceIGBT Inverter Based
Voltage415V
Phase3
Weight120 kg
Frequency50 Hz
ColorBlue
Automatic GradeSemi-Automatic
BrandCruxweld
CoolingAir Cooled
Enclosure ClassH
Fusing150A
Maximum Kva Rating110
Transformer Insulation ClassH
Weld Stud Range4mm to 28mm
Welding Time1500ms
ModelCSD2800i

Cruxweld CSD series IGBT Inverter Stud Welding Machine adopt advanced inverter IGBT technology, has excellent welding performance. It can weld Φ4mm-Φ28mm studs. Stud welder welding current is from 200A to 2500A. CSD series inverter stud welding machines are widely used on steel structure, high-speed railway, power plants, ship-building, refractory construction etc.


Features

  • IGBT inverter technology
  • Less weight, power efficient, safe and reliable
  • Easy control and digital display of welding voltage, current and time
  • Special torch with extending cables, large lifting force, low heat and durable
  • The inner circuit board is under waterproof, anticorrosion, dampproof and dustproof treatment
  • Weldable even onto very thin plates
  • Joining of different materials is possible
  • Fast and easy handling, leads to high productivity
  • No marks on the backside of coated or high alloyed plates
  • Precise weld time and weld current adjustments
  • The welding zone is minimal to avoid distortion of the workpiece
Request
Callback
Yes! I am Interested
View PDF

Drawn Arc Stud Welding Machines

Drawn Arc Stud Welding Machines
  • Drawn Arc Stud Welding Machines
Get Best Quote
Approx. Price: Rs 2.85 Lakh / PieceGet Latest Price

Product Details:

Minimum Order Quantity1 Piece
BrandCRUXWELD
Capacity18 mm
Welding TypeDrawn Arc Stud Welder
PhaseThree
Power Source415V
Automatic GradeSemi-Automatic
Output Current2500

The CSD900 is a fully integrated stud welding system for ferrule-shielded and gas-shielded drawn arc stud welding. The CSD900 contains digital controls for weld time, weld current, and gas purge time. The system was designed to be a perfect fit for shop use, welding up through 1/2″ studs. This is all contained in a compact, portable package.

Features:
  • Microcomputer control with constant current control.
  • Visual current and time display with current reporting procedure.
  • Infinitely adjustable welding time and current.
  • Solid state switching.
  • Thermostatically controlled air cooling.
  • Recessed front and back panels protect controls and weld sockets.
  • Twist and lock weld plugs and sockets.
  • Hand tool can use any UK or European chucking system.
  • Gun lift test facility and gas facility.
Request
Callback
Yes! I am Interested

Capacitor Welding Machine

Capacitor Welding Machine
  • Capacitor Welding Machine
Get Best Quote
Approx. Price: Rs 82,000 / PieceGet Latest Price

Product Details:

Minimum Order Quantity1 Piece
Welding TypeStud Welder
Model NumberCCD-88
Current2600A
Automatic GradeSemi-Automatic
Power220V
Frequency50/60Hz
Fusing16A
Output Current400-500 A
CapacityUpto 8mm
Power SourceCapacitor Discharge

This is a lightweight capacitor discharge welder capable of welding studs with full base diameters as large as 3/8". The fully regulated power supply operates on 110V or 220V, producing a smooth and stable CD weld. The continuously adjustable charging voltage allows quick welding sequences. An electronically clocked inverter charging board protects capacitors from losing charge, making charge times short and efficient.

Features:

  • Continuously adjustable charging voltage
  • Digital display of weld time
  • Short charge time
  • Protective metal casing
  • Portable
  • Reliable
  • Safety switch for optimal safety
  • Powder coated so that labels do not wear off
  • Welding materials: steel (unalloyed and alloyed), aluminum, weldable special alloys, brass
Request
Callback
Yes! I am Interested

Shear Connector Studs

Shear Connector Studs
  • Shear Connector Studs
  • Shear Connector Studs
Get Best Quote
Approx. Price: Rs 25 / PieceGet Latest Price

Product Details:

Minimum Order Quantity100 Piece
ApplicationStud Welding
Product TypeBolt
Size4mm to 28 mm
MaterialStainless Steel
Min Diameter6 mm
Max Diameter25 mm
Surface Treatment Galvanised

The latest technology used in construction of buildings and bridges. Shear Connector Studs are used as a major element in the composite structure. Excellent quality, high load bearing capacity, durability, faster speed of construction, etc. are some of the reasons why it is gaining popularity in the construction industry.

Shear connector means headed steel studs. These are welded to a structural member for achieving composite action with concrete. Shear connector is one of the major elements in the composite structure.

Advantages of Shear connector
  • Shear Connectors have high load bearing capacity and offer heavy resistance for failure by shearing, in composite structure.
  • Very high rate of production can be achieved, during construction.
  • Flexibility in design of construction.
  • Shear Connectors can be welded through Deck Sheet, to produce concrete slab.
  • Size of columns are smaller hence for given built up area we can have larger carpet area Strong, durable, stable and seismic resistant.
Request
Callback
Yes! I am Interested

Stud Welding Gun

Stud Welding Gun
  • Stud Welding Gun
Get Best Quote
Approx. Price: Rs 75,000 / PieceGet Latest Price

Product Details:

Minimum Order Quantity1 Piece
Frequency50/60Hz
Voltage415V

We design and manufacture a range of stud welding guns for use with our machines and weld studs. Our stud guns are balanced and lightweight; this makes them ideal for manual stud welding work on a range of materials for diverse industries.

We have a specialised range of drawn arc stud welding guns for our drawn arc controllers and systems. These guns help operators create strong and penetrative welds on materials of 2mm+ thickness. However, they remain light in weight, effectively reducing operator fatigue.
Request
Callback
Yes! I am Interested
X

Explore more products



Reach Us
Rahul Srivastava (Sales Manager)
5, Sector 29
Faridabad- 121008, Haryana, India



Call Us

Share Us

F GT L


Send E-mailSend SMS
