Product Details:
Brand | Cruxweld |
Model | CTW-TIG400PACDC |
Output Current Range | 300-400 A |
Working Voltage | AC415+/-15% |
Frequency | 50 Hz |
Duty Cycle | 13.2kVA@100% |
Insulation | H |
Cooling | Forced Air |
Weight | 60kg |
Dimension (LxBxH) | 709x440x750 mm |
Product Type | New |
Surface Treatment | Galvanised |
Technology | Inverter IGBT Based |
Material of Construction | Stainless Steel |
Max working temperature | 55 Degree C |
Product Details:
Minimum Order Quantity | 1 Piece |
Brand | Cruxweld |
Model | CTW-TIG500P |
Output Current Range | 10-500 A |
Phase | 3 Phase |
Working Voltage | 415V +/-15% |
Duty Cycle | 18.5kVA@100% |
Insulation | H |
Cooling | Forced Air |
Efficiency | 85% |
Weight | 62kg |
Dimension (LxBxH) | 600x645x318 mm |
Product Type | New |
Is It Portable | Portable |
Material of Construction | Stainless Steel,Aluminium |
Rated Duty Cycle | 60% |
Pulse Frequency | 20 KHz |
Product Details:
Minimum Order Quantity | 1 Piece |
Power Source | Inverter Based |
Welding Type | GTAW |
Output Current Range | 210A |
Automation Grade | Semi-Automatic |
Output Current | 200-300 A |
Phase | Single Phase |
Current (Ampere) | 200-300 |
Brand | Cruxweld |
Technology | IGBT Based |
Weight | 12 Kg |
Surface Treatment | Galvanised |
Material of Construction | Stainless Steel |
Leveraging on our modern production facility, we manufacture and supply a broad collection of TIG Welding Machines. These machines make use of tungsten electrode and shielding gas for welding process to protect welding area from any contamination. Manufactured using high grade raw material and latest technology, these machines is widely used in fabricating and engineering applications.
Features:
No breakdown
High efficiency
Power saving
Product Details:
Brand | Cruxweld |
Model | CTW-TIG400P |
Output Current Range | 10-400 A |
Number of Phase | 3 |
Working Voltage | 415V +/-15% |
Duty Cycle | 9.8kVA@100% |
Insulation | H |
Cooling | Forced Air |
Efficiency | 85% |
Weight | 44kg |
Dimension (LxBxH) | 560x300x550 mm |
Product Type | New |
Surface Treatment | Galvanised |
Material of Construction | Stainless Steel |
Technology | Inverter Based,IGBT Based |
Colour | Yellow |
Current (Ampere) | 400-500 A |
Specification | Unit | CTW-TIG400P |
Input voltage | Volt | 415±15% |
Phase | No | 3 |
Frequency | Hz | 50/60 |
Max input KVA@100% duty cycle | KVA | 9.8 |
Welding current range (TIG Mode) | Amps DC | 10-400 |
Welding current range (MMA Mode) | Amps DC | 20-400 |
Welding current @60% duty cycle | Amps | 400 |
Welding current @100% duty cycle | Amps | 310 |
Efficiency | % | 85 |
Degree of protection | Class | IP23S |
Insulation | Class | H |
Gas pre-flow time | sec | 0-5 |
Gas post flow time | sec | 0.1-20 |
Pulse frequency | Hz | 0.5-10 |
Current upslope & down slope time | sec | 0-10 |
Suitable electrode diameter | mm Φ | 1.6, 2.5, 3.2 intermittent 4 |
Protections | – | Over voltage, under voltage, over temperature |
Cooling | Type | Forced Air |
Dimensions (LxWxH) | mm | 560x300x550 |
Weight (approx) | Kg | 44 |

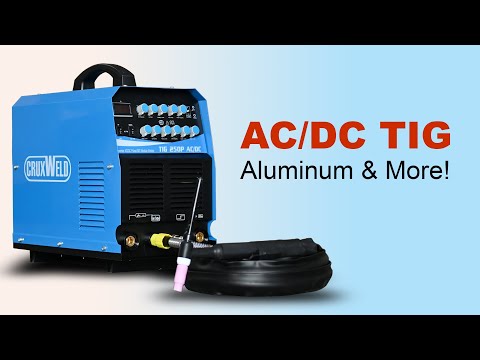

Product Details:
Minimum Order Quantity | 1 Piece |
Brand | Cruxweld |
Model | TIG-20DC |
Welding Type | AC/DC TIG Welding |
Output Current Range | 10-200 A |
Power Consumption | 12 kVA |
Gas Type | Argon |
Technology | IGBT Based |
Usage/Application | Aluminum Welding |
Phase | 3 Phase |
Weight | 95kg |
Working Voltage | AC415+/-15% |
Insulation | H |
Cooling | Forced Air |
Voltage | 230V |
Frequency | 50/60 Hz |
Capacity | 250A |
Automation Grade | Automatic |
Dimension (LxBxH) | 780 x 310 x 680 mm |
Product Type | New |
Automatic Grade | Automatic,Semi-Automatic,semi- |
Surface Treatment | Galvanised |
Output Current (Ampere) | 0-100,100-200,200-300,300-400,400-500,>500 |
Material of Construction | Stainless Steel |
Clients can avail from us an extensive array of TIG AC - DC Welding Machine. Developed with utmost precision using premium quality raw material and advanced techniques, these machines are designed in compliance with the international standards. In addition to this, these are stringently tested on various parameters of quality in order to deliver flawless range at client's end. Owing to their salient features these are highly treasured by clients.
Features:
Adjustable welding arc force
Minimum maintenance
High welding speed
Product Details:
Brand | Cruxweld |
Model | CTW-TIG200i |
Output Current Range | 5-200 A |
Technology | IGBT Based, Inverter Based |
Phase | Sinlge |
Working Voltage | AC220+/-15% |
Duty Cycle | 4kVA@100% |
Insulation | H |
Cooling | Forced Air |
Weight | 6.5kg |
Dimension (LxBxH) | 395x153x301 mm |
Product Type | New |
Inverter Technology | MOSFET |
Surface Treatment | Galvanised |
Material of Construction | Stainless Steel |
Colour | Yellow |
Product Details:
Minimum Order Quantity | 1 Piece |
Material | Aluminum |
Automation Grade | Semi-Automatic |
Output Current | 200-300 A |
Output Current (Ampere) | 200-300 A |
Phase | Single |
Suitable For Welding Rod | 3-4mm |
Automatic Grade | Semi-Automatic |
Voltage | 230V |
Output Current Range | 5-200 Amp |
Technology | Inverter Technology |
Brand | Cruxweld |
Surface Treatment | Galvanised |
Colour | Yellow |
Product Details:
Minimum Order Quantity | 1 Piece |
Material of Construction | Aluminium |
Gas used | Argon |
Output Current | 100-200 A, 200-300 A, 300-400 A, 400-500 A, >500 A |
Material | Aluminum, Stainless Steel |
Automatic Grade | Manual |
Brand | Cruxweld |
Is It Portable | Portable |
Product Details:
Brand | Cruxweld |
Model | CTW-TIG400i |
Output Current Range | 10-400 A DC |
Phase | 3 Phase |
Working Voltage | AC415+/-15% |
Duty Cycle (at 100%) | 10 kVA |
Insulation | H |
Cooling | Forced Air |
Warranty | 2 years |
Weight | 24kg |
Dimension (L x B x H) | 565x306x432 mm |
Product Type | New |
Material of Construction | Stainless Steel |
Rated Duty Cycle | 60 % |
Power | 16.4 KVA |
Surface Treatment | Galvanised |
Our company has earned accolades in offering Argon Welding Machine to the clients. Argon TIG Welding Machine is known for attributes like quality checked, easy maintenance and long service life. Offered range is beautifully designed by utilizing the finest quality raw material with the help of modern techniques in compliance with set industry norms. This product is tested on diverse parameters in order to ensure flawlessness. Offered range is widely known by the esteemed clients for characteristics like optimum performance and quality tested.
Features:
Product Details:
Brand | Cruxweld |
Model | CTW-TIG400iJ |
Output Current Range | 10-400 A |
Technology | Inverter Based, IGBT Based |
Phase | 3 Phase |
Working Voltage | AC415+/-15% |
Duty Cycle | 12.5kVA@100% |
Insulation | H |
Cooling | Forced Air |
Weight | 26kg |
Dimension (LxBxH) | 565x306x502 mm |
Product Type | New |
Material of Construction | Stainless Steel |
Surface Treatment | Galvanised |
Product Details:
Minimum Order Quantity | 1 Piece |
Brand | Cruxweld |
Model | CTW-TIG315ACDC |
Output Current Range | 5-315 A |
Phase | 3 Phase |
Working Voltage | AC415+/-15% |
Duty Cycle | 9.5kVA@100% |
Insulation | H |
Cooling | Forced Air |
Weight | 36kg |
Dimension (LxBxH) | 615x325x620 mm |
Product Type | New |
Wireless Remote Control | Yes |
Up or Down Remote Control Torch | Yes |
Generator Compatible | Yes |
Is It Portable | Portable |
MMA Facility | Available |
Input Power Capacity | 7.4 kVA |
No-load Voltage | 70 V |
Pulse Width Range | 1 - 100 % |
Additional Information:
Product Details:
Minimum Order Quantity | 1 Piece |
Output Current | 250 Amp |
Usage/Application | Industrial |
Automation Grade | Semi-Automatic |
Gas Type | Argon |
Phase | Single Phase |
Technology | IGBT Based |
Frequency | 50/60 Hz |
Weight | 16 kg |
Input Supply | 230V |
Type Of Cooling | Air Cooled |
Efficiency | 85% |
Pre- Flow | Yes |
Duty Cycle | 100% |
Protection Class | H |
Brand | Cruxweld |
I Deal In | New Only |
Cold welding, on the other hand, is a solid-state welding process that does not involve melting the metals. It relies on applying pressure to clean metal surfaces, causing their atoms to diffuse and create a strong molecular bond. Cold welding machines are specifically designed for this purpose and employ different mechanisms to apply pressure without the need for heat.
If there is a specific "TIG cold welding machine" you are referring to, it may be a specialized machine that combines elements of both TIG welding and cold welding processes. However, I am not familiar with any such specific machine in my training data. It would be advisable to consult with welding equipment manufacturers or industry experts for more information on any specific machine that combines TIG welding and cold welding functionalities.
Features:
Additional Information:
Product Details:
Minimum Order Quantity | 1 Piece |
Output Current | 250 Amp |
Brand | CRUXWELD |
Model | CWMIG200iJ |
Phase | Single |
Working Voltage | 230V |
Welding Current at 100% Duty Cycle | 200 |
Insulation | H |
Cooling | Forced Air |
Power Factor | 0.93 |
Efficiency | 85% |
Technology | IGBT |
Protection Class | IP23 |
Warranty | 2 Years |
Weight | 21 Kg |
Dimension (L x B x H) | 530x280x510 mm |
Product Type | New |
Country of Origin | Made in India |
The 3-in-1 Tig Mig Arc Welding Machine is a versatile and multi-functional welding solution designed to cater to a variety of welding needs. This all-in-one machine combines TIG (Tungsten Inert Gas), MIG (Metal Inert Gas), and Arc welding capabilities, making it an ideal choice for both professional welders and hobbyists. Its ability to switch between different welding methods offers unparalleled flexibility and efficiency in a range of applications.
Key Features:
Additional Information:
Product Details:
Minimum Order Quantity | 1 Piece |
Output Current | 400 Amp |
Brand | Cruxweld |
Model | CWT-20 |
Phase | Single |
Working Voltage | 230V |
Insulation | H |
Cooling | Water |
Efficiency | 85% |
Technology | IGBT |
Protection Class | IP23 |
Usage/Application | Water cooling system for TIG welding |
Warranty | 2 Years |
Weight | 25 Kg |
Dimension (L x B x H) | 560x410x540 mm |
Product Type | New |
Cooling Power (1L/min) | 1.6KW |
Maximum Pressure | 0.48 MPA |
Operating Temperature | -20 DegreeC ~ 60 DegreeC |
Country of Origin | Made in India |
The "TIG Water Cooler" is an innovative Water Cooling Unit specifically designed for welding machines, offering exceptional cooling capabilities to maintain the ideal temperature for welding operations. This unit is especially beneficial for TIG welders, where precise temperature control is vital for optimal performance.
Features of the TIG Water Cooler:
Efficient Cooling System: This 'Welding Water Chiller' efficiently manages the heat generated during the welding process, ensuring your equipment remains at a safe operating temperature.
Universal Compatibility: Designed to work seamlessly with a variety of welding machines, it's particularly effective as a 'TIG Welder Water Cooler'.
Robust Construction: Built to last, this 'Welding Water Cooling Unit' is made with high-quality materials, ensuring durability and reliability for continuous use.
Easy to Use: With a user-friendly interface, this unit can be easily operated by both professional and amateur welders.
Compact Design: The sleek and compact design of the cooler makes it a convenient addition to any welding setup without taking up much space.
Noise Reduction: Engineered to operate quietly, it reduces noise in the work environment, making it a more pleasant experience.
Energy Efficient: Not only does it maintain the temperature effectively, but it also does so with minimal energy consumption.
Additional Information:
Product Details:
Mains voltage fluctuations | (+/-) 20 % |
Voltage | 220 V / 380 V / 415 V |
Phase | Single Phase |
Brand | Cruxweld |
Current (Ampere) | 200-300 |
Technology | Inverter Based |
Additional Information:
Product Details:
Automatic Grade | Automatic, Semi-Automatic |
Brand | Cruxweld |
Cooling System | Water-cooled head |
Type | Dual-wing opening |
Clamping jaws material | Stainless Steel |
Product Details:
Phase | Three Phase |
Current (Ampere) | 300-400 |
Brand | Cruxweld |
Material of Construction | Stainless Steel, Aluminium |
Surface Treatment | Galvanised |
Colour | Yellow |
Product Details:
Automatic Grade | Semi-Automatic , Automatic |
Output Current (Ampere) | 300-400, 400-500, >500, 100-200, 200-300, 0-100 |
Brand | Cruxweld |
Material of Construction | Stainless Steel, Iron |
Surface Treatment | Galvanised |
Product Details:
Minimum Order Quantity | 1 Piece |
Brand | Cruxweld |
Model | iTIG200ACDC |
Output Current Range | 5-200 A |
Welding Type | Aluminum Welding |
Finished Product Delivery Type | Home Delivery |
Mode Of Service | Offline |
Service Includes | Aluminum Welding |
Phase | Sinlge |
Working Voltage | AC220+/-15% |
Duty Cycle | 6.4kVA@100% |
Insulation | H |
Product Type | New |
Cooling | Forced Air |
Automatic Grade | Automatic |
Weight | 22kg |
Dimension (LxBxH) | 490x320x301 mm |
Surface Treatment | Galvanised |
Material of Construction | Stainless Steel |
Product Details:
Brand | Cruxweld |
Model | iTIG400DC |
Output Current Range | 10-400 A |
Suitable For Welding Rod | 3-4mm |
Phase | 3 Phase |
Working Voltage | AC415+/-15% |
Duty Cycle | 12.5kVA@100% |
Insulation | H |
Cooling | Forced Air |
Power Factor | 0.93 |
Efficiency | 85% |
Weight | 32kg |
Dimension (LxBxH) | 610x300x520 mm |
Product Type | New |
Surface Treatment | Galvanised |
Material of Construction | Stainless Steel |
Features :
Product Details:
Brand | Cruxweld |
Model | iTIG200DC |
Output Current Range | 5-200 A DC |
Suitable For Welding Rod | 2-3mm |
Phase | Sinlge |
Working Voltage | AC220+/-15% |
Duty Cycle | 4kVA@100% |
Insulation | H |
Product Type | New |
Cooling | Forced Air |
Efficiency | 85% |
Dimension (LxBxH) | 395x153x301 mm |
Surface Treatment | Galvanised |
Weight | 6.5 kg |
Material of Construction | Stainless Steel |
Frequency | 50/60 Hz |
Product Details:
Minimum Order Quantity | 1 Piece |
Brand | Cruxweld |
Model | CTW-TIG300i |
Output Current Range | 5-300 A DC |
Phase | 3 Phase |
Working Voltage | AC415+/-15% |
Duty Cycle | 7.5kVA@100% |
Insulation | H |
Cooling | Forced Air |
Weight | 12kg |
Dimension (LxBxH) | 505x203x375 mm |
Product Type | New |
Efficiency | 85% |
Frequency | 50/60 Hz |
Open circuit voltage | 70 VDC |
Product Details:
Output Current Range(A) | 200 |
Brand | Cruxweld |
Rated Input Power(KVA) | 4.5 |
Voltage | 220 V / 380 V / 415 V |
Display | Digital |
Colour | Red |
Material of Construction | Stainless Steel, Aluminium |
Product Details:
Brand | Cruxweld |
Model | CTW-TIG400iJ |
Output Current Range | 10-400 A |
Suitable For Welding Rod | 1-2mm, 2-3mm, 3-4mm, <1mm |
Phase | 3 Phase |
Working Voltage | AC415+/-15% |
Duty Cycle | 12.5kVA@100% |
Insulation | H |
Cooling | Forced Air |
Efficiency | 85% |
Weight | 26kg |
Dimension (LxBxH) | 565x306x502 mm |
Product Type | New |
Technology | MOSFET Inverter |
Colour | Yellow |
Material of Construction | Stainless Steel |
Additional Information:
Product Details:
Brand | Cruxweld |
Model | CTW-TIG200P |
Output Current Range | 5-200 A |
Technology | Inverter Based, IGBT Based, Rectifier Based |
Phase | Sinlge |
Working Voltage | AC220+/-15% |
Duty Cycle | 4.5kVA@100% |
Insulation | H |
Cooling | Forced Air |
Weight | 7.5kg |
Dimension (LxBxH) | 460x270x345 mm |
Product Type | New |
Material of Construction | Stainless Steel |
Surface Treatment | Galvanised |
Product Details:
Output Current (Ampere) | 200-300, 300-400, 600, 100-200, 400-500, 0-100 |
Automatic Grade | Semi-Automatic , Automatic |
Brand | Cruxweld |
Voltage | 220 V / 380 V / 415 V |
Surface Treatment | Galvanised |
Colour | Yellow |
Material of Construction | Stainless Steel, Aluminium |
