Butt Welder

Product Details:

Bandsaw Blade Butt Welding Machine is used to weld bandsaw blades from 3 mm to 50 mm. This comes in the range of 3 kVA and 15 kVA for joining of bandsaws and bandsteel of different qualities.

Features:

• High quality and time saving by fast and simple welding operation
• Weld joints without misalignment
• No additional solder and flux
• Fast preparation of strip ends
• Robust design - therefore long lasting and reliable
• Precise and wear resistant parallel guiding rails of the movable welding jaw
• Clamping device adjustable to constant pressure

Additional Information:

• Pay Mode Terms: L/C (Letter of Credit),T/T (Bank Transfer),D/P,D/A

Product Details:

We are engaged in manufacturing and exporting of Bi-Metal Bandsaw Blade Butt Welder. The compact and robust machine design with intuitive user guidance is designed for industrial use in production in metalworking and woodworking companies.

Features:

• No addition of solder, flux or other filler materials
• Exactly aligned, offset-free welds through the use of wear-free guides with highest accuracy
• Quick- change electrode inserts and plungers for short set-up times
• Automatic control of the welding process for exactly repeatable welding results
• Precise multi-stage adjustment of the welding voltage for optimum process parameters

Additional Information:

• Pay Mode Terms: L/C (Letter of Credit),T/T (Bank Transfer),D/P,D/A

Product Details:

Upset Butt Welder is esthetically designed as portable models mounted as customary on a movable stand fitted with four wheels, they're made with specific regard for fast, easy and fool proof operation by even unskilled workmen, the welding method being automatic. The settings are easy, finally adjustable and reproducible for all variables. Uniform welds of high strength capable of withstanding subsequent drawing is ensured.

Applications : Including upset butt welding of all profiles of wire and flats of iron, steel, alloy and carbon steel, copper aluminum, brass and other light metals and their alloys.

Product Details:

We avail our users extremely efficient and functional Pneumatic Rod Butt Welder. We tend to design our product exploitation all advance options and materials to create them sturdy and consistent. Our products are optimum in performance and area unit provided to various departments throughout the state and abroad. they're extremely reliable and provided at engaging worth vary.

Features:

• Optimum performance
• Strong and convenient
• Portable and simple to use

Product Details:

Resistance butt welder CBN 12 welder is especially designed for wire drawing mills for joining steel, brass, aluminium and copper rods and are recommended for non heavy duty applications.

CBN 12 model is standard supplied with the annealing function and four wheel trolley. Jaws opening and closing is fitted with lever operated jaws.
Upon request all models of this series can be supplied with a grinding wheel.

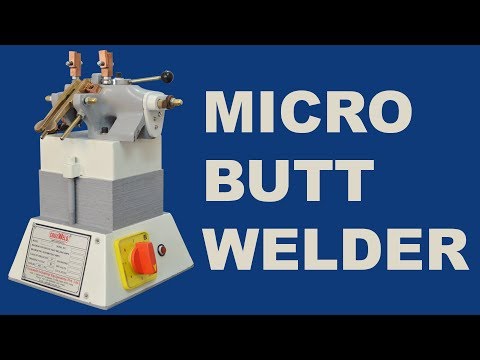

Product Details:

We have marked a definite position within the market by giving superior quality Micro Wire Butt Welder. The provided butt welder is manufactured using optimum quality parts and innovative technology in synchronize with industry norms. Our provided butt welder is obtainable in varied sizes and designs in accordance with the requirements of our purchasers. Being client centrical, we tend to strictly check this butt welder so as to make sure its quality.

Salient Features

Specially designed for Butt welding of ferrous and non-ferrous wires in the range of 0.30 to 2.50 mm diameter, to withstand subsequent drawing The automatic welding process ensures high tensile and uniform weldsUpset travel -movable platen travel on twoparallel guidesUpset pressure -provided by a precision spring action on the movable platen, pre-calibratedElectrodes -special wear resistant copper alloy electrodes provided with precision 'V' grooves, permit rapid and accurate alignment of wiresAdjustment of welding current by 8 position rotary switchThe ends of the wire to be joined are 'prepared' on the special shearing attachment (optional)Welding current and initial up-set gap set according to the size of wire, the up-setting pressure being preset at worksThe wire ends are rigidly clamped by special quick acting clamps and viewed through an illuminated magnifying glass (optional), to ensure correct alignment of the wire endsBy pushing the button, butt welding cycle is initiated and completedautomatically by built-in controlsWeld completed, the job is then de-clamped and annealed in the annealing device (optional), if necessary

Features:

• High stregth
• Corrision resistance
• Precisely designed

Product Details:

We are a unique and trustworthy name in the industry in providing our precious clients an exclusive array of Hand Operated Rod Butt Welder. Offered machines are completely manufactured and designed using the best quality parts and modern technology in tune to the set industry quality norms. Moreover, to ensure the best quality, the provided machines are strictly tested by skilled quality specialists. These machines find applications in various sectors and industries.

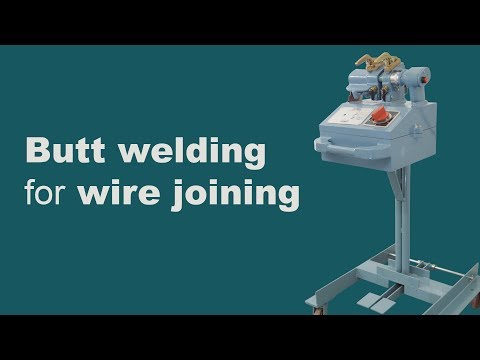

Product Details:

Used for joining wire ends, our Wire Butt Welder is sturdy, energy efficient, superior in performance and ideal for usage underneath harsh operating conditions. These machines can be customized and availed at competitive market costs. Moreover, our machines are safe to use and equipped in an exceedingly form of specifications to cater to the specified desires of cable and wire industries.

Salient Features:

• The welding operation on these machines is automatic and the settings are easy
• Electrode spacing is adjusted by a lever set against a plate calibrated for wire diameter
• Upsetting pressure is adjusted by means of a dial calibrated for wire diameter
• Welding current is selected by a rotary switch
• Wires to be joined should be cut straight, exactly at right angles and free from burrs
• Wire ends are clamped by spring loaded clamping device which can be opened singly or together by food pedals
• Releasing the foot pedals leaves the wire clamped under adequate pressure
• By the push of the button, welding cycle is initiated and completed automatically by buit-in controls
• Weld completed, the job is then de-clamped and annealed if necessary in the separate annealing electrodes
• Upset travel - movable platen travel on two parallel guides
• Upset pressure - provided a precision spring action on the movable platen
• Electrodes - special wear resistant copper alloy electrodes provided with precision 'V' grooves, permit rapid and accurate alignment of wires
• Adjustment of welding current in 6 steps from 50% to 100% by rotary switch

Technical Data :



Product Details:

This robust machine concept with the intuitive operation is especially suited for the use in wire-drawing mills, cable factories and in wire processing. Due to the accurate linear welding carriage guide, the machine is also ideally suited for the joining of wire products in a single operation.

• Suitable to weld copper wire from 0.2 to 0.7 mm.
• Finest welding quality with metallurgical clean joints; strengths of approx. 90% (related to the base material)
• Short welding times (depending on the wire diameter only a few seconds are required)



Product Details:

We are a unique and trustworthy name in the industry in providing our precious clients an exclusive array of Flash Butt Welders. Flash butt welding is one of the resistance welding processes, in which the energy transfer to the parts that are going to be joined is mainly provided by resistance heat in the parts themselves. Offered machines are completely manufactured and designed using the best quality parts and modern technology in tune to the set industry quality norms. Moreover, to ensure the best quality, the provided machines are strictly tested by skilled quality specialists.

Application: The workpieces are positioned end-to-end. As a general rule, the flash butt welding process is sub-divided into pre-flashing, pre-heating, flashing and upsetting. Pre-flashing is used to handle problems when the two surfaces to be joined are not parallel. Pre-heating is carried out under low welding pressure. When the welding joint has been heated to a certain temperature, flashing starts and the surface material is burned off, resulting in an even and clean joint surface. The flash consists of molten and oxidized material. After flashing, upsetting starts and presses the two surfaces together with high force to produce a good joint.
